AUTOMATIC
CUT-TO-LENGTH MACHINE

OVERVIEW          AND GENERAL DESCRIPTION:

2021 Cut to length Machine.png

See through plexiglass protective

cover for the safety of the operator

(moving rollers can bite!)

High End Hydraulic cutting shear for light duty metal cutting.

Adjustable bending attachment

for edge bending. - Ideal for trailer

construction.

Can cut horizontally in 3 different

strips. Several configurations manually adjusted.

Decoiler Specifications:

Max Feeding width: 51in. or 4.25 ft.

Coil ID range: 508mm±30mm

Capacity: Max. 5 Ton

Cut-To-Length Specifications:

Post Hydraulic Cutting Device

Delta or Mitsubishi PLC Control System

Automatic Control of Quantity And Cutting Length

Input Data(Production Batch,pcs,Length,etc.) On The Touch Screen.

Automatic Production

7-Inch Delta/Mitsubishi Touch Screen Standard

Control Voltage 24V

CLEAN MENUS                    FOR A SIMPLE OPERATION EXPERIENCE

MAIN MENU:

Choose up to 5 different language settings

  English

  Spanish

  Italian

  German

  Portuguese

OPERATIONS MENU:

  Perform manual or automatic cuts.

  Input up to 3 different lengths and the batch           amount for automatic cuts.

  Keeps track of amount of pieces that have been cut.

ADVANCED SETTINGS:

  Set delays for the cutting

  Deceleration distance

  Pulse set

  and more

Screen 1.png
page 2.png
advanced options.png

EXPLORE               VERONA'S AUTOMATIC CUTTING MACHINE:

DECOILERS                CHOOSE THE RIGHT ONE FOR YOU

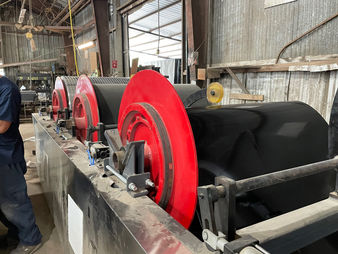

Single Hydraulic Decoiler

Individual units Hydraulic powered.

Coil Expands and contracts for easy loading and unloading of coils.


3-5 Multi Decoiler

Join multiple decoilers on one chasis for a continuous line of production. With up to 5 coilers you can have up to 5 different colors or material on tap.

Powered by electric motors and a pneumatic release system.

For more Verona Manufacturing Machines
